Komax AG products

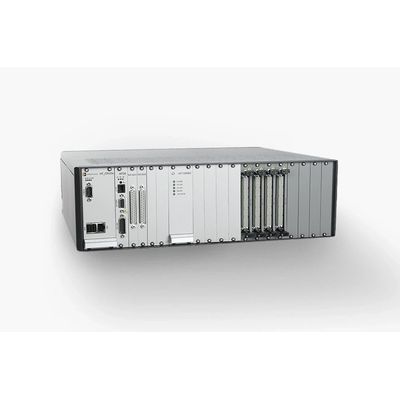

The NT 628 modular wiring tester with 512 test points for automated production lines optionally performs high voltage tests up to 1500 VDC and high current tests up to 2 ADC. The NT 628 modular wiring tester is specially designed for automated production lines. With 512 test points, the system guides connection, short-circuit, and component tests as well as optional high voltage tests up to 1500 VDC and high current tests up to 2 ADC. The system offers graphical test result visualization for intuitive fault localization and optional PROFINET remote control for Industry 4.0 integration. The modular design of the NT 628 can be flexibly expanded with four-wire measurement or insulation test up to 10 GΩ. The system meets current test standards. The included NT Control software allows for easy creation of test programs with a wide range of applicators for fault localization and automatic result logging.

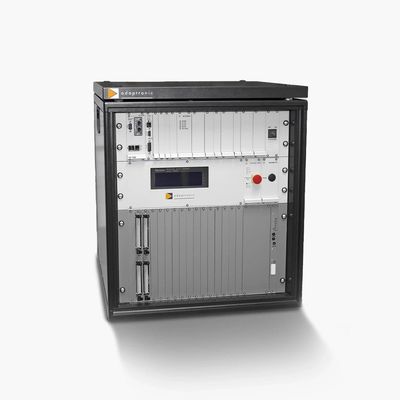

The NT 700-2 and NT 700-3 wiring testers are designed with up to 1024 test points for insulation testing up to 1500 VDC and voltage proof tests up to 4670 VDC and 3300 VAC. The NT 700-2 test device has test point interfaces on the front, while the NT 700-3 model is designed as a test bench variant with test point interfaces on the rear. Although they differ in their application, both perform connection, short-circuit, and component tests up to 25 VDC or optionally up to 40 VDC or 250 VDC..The NT 700-2/NT 700-3 provides a wide range of expansion options for the electric vehicle, medical technology, and automation industries. The test device can be configured to automatically test relays, time relays, contactors, indicator lights, function sequences, and much more.The included NT Control software makes it easy to create, edit, and manage test programs.
